Description:
This 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering clear and accurate visuals suitable for a range of applications that require high-quality displays in a compact form factor.
Parameter:
|
Model |
P028B124-IPS |
|
Screen Size |
2.8 inch |
|
Number of Pixel |
240RGB(H)x320(V) |
|
Pin |
14 pins |
|
Display area |
43.20(H)x57.60(V)mm |
|
Pixel pitch |
0.180(H)x0.180(V)mm |
|

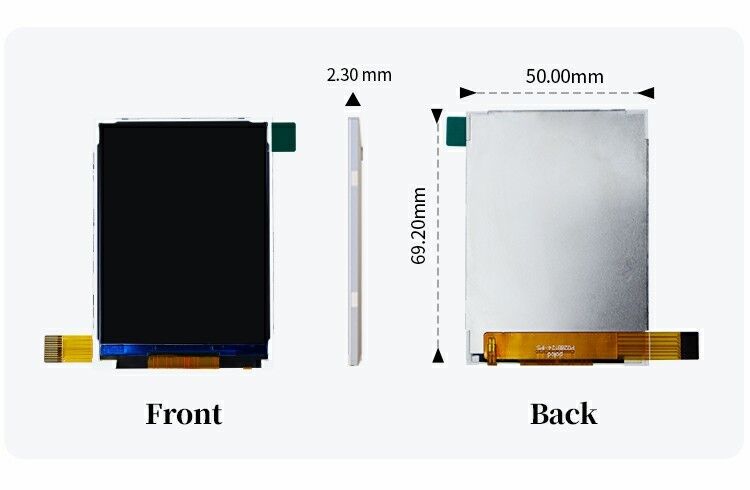

Outline Dimension |
50.00x69.20x2.30mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally Black |
|
Viewing Direction(eye) |
ALL |
|
Display Color |
262K |
|
Luminance(cd/m2) |
300 nit |
|
Contrast Ratio |
1200:1 |
|
Interface |
4wire SPI |
|
Back-light |
LED Side-light type |
|
Drive IC |
ST7789V |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
Features
Featuring IPS technology and an SPI interface, this 2.8-inch TFT LCD display provides clear and accurate visuals, making it suitable for a wide range of applications. Its high resolution and color accuracy ensure clear and vibrant visuals, while the SPI interface enables faster data transfer, making it an ideal choice for applications that require real-time data updates. The display's compact size and versatile functionality make it an excellent choice for manufacturers seeking high-quality display solutions in a small form factor. Additionally, the IPS technology provides wider viewing angles and better color reproduction, making the display suitable for applications where visual clarity and accuracy are crucial.
