Description:

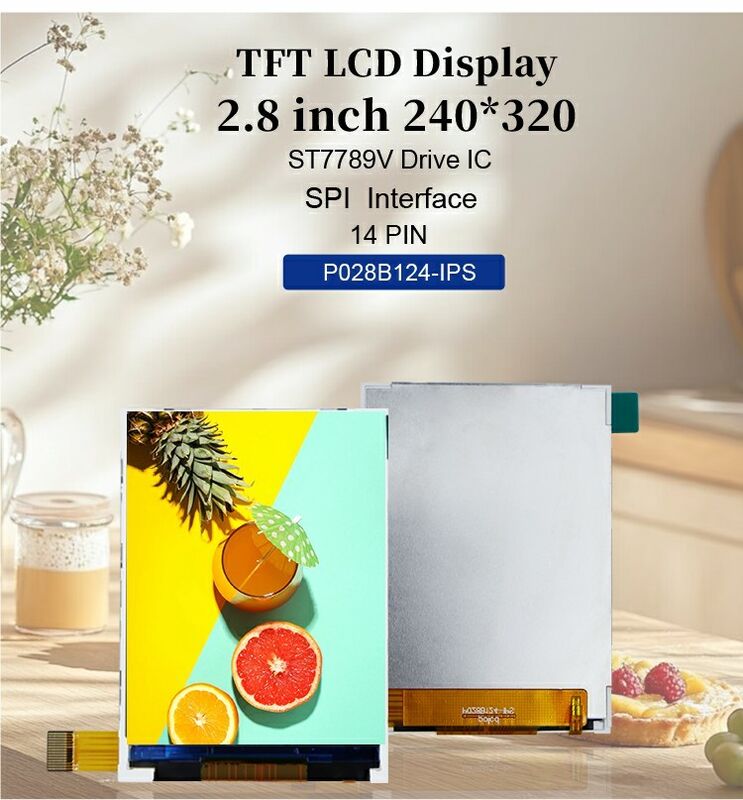

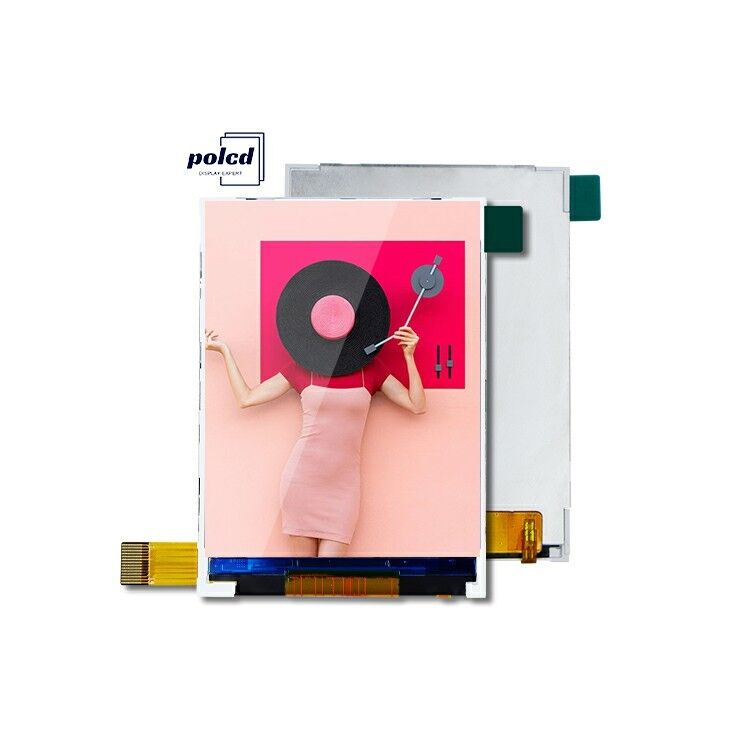

This 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering clear and accurate visuals suitable for a range of applications that require high-quality displays in a compact form factor.
Parameter:
|
Model |
P028B124-IPS |
|
Screen Size |
2.8 inch |
|
Number of Pixel |
240RGB(H)x320(V) |
|
Pin |
14 pins |
|
Display area |
43.20(H)x57.60(V)mm |
|
Pixel pitch |
0.180(H)x0.180(V)mm |
|
Outline Dimension |
50.00x69.20x2.30mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally Black |
|
Viewing Direction(eye) |
ALL |
|
Display Color |
262K |
|

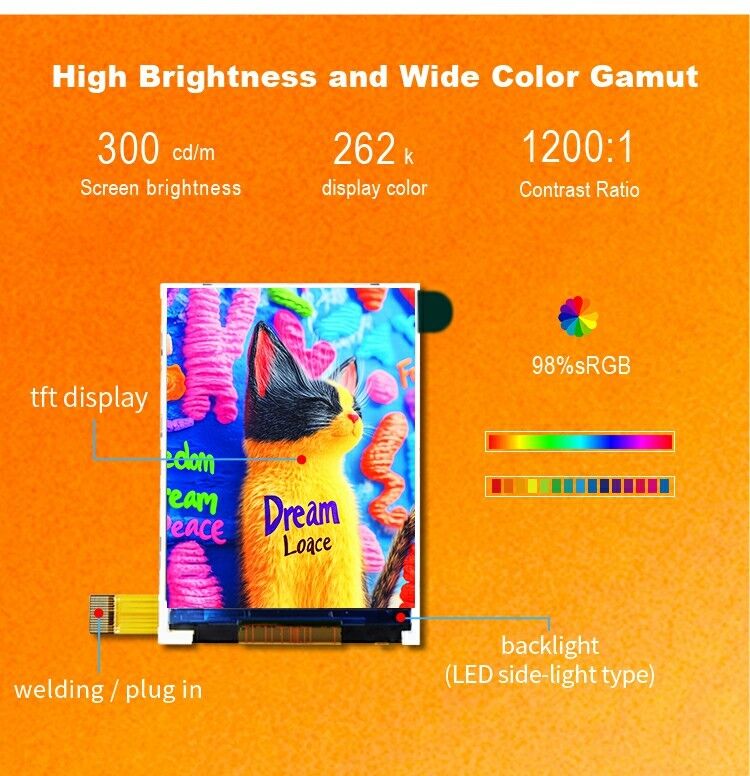

Luminance(cd/m2) |
300 nit |
|
Contrast Ratio |
1200:1 |
|
Interface |
4wire SPI |
|
Back-light |
LED Side-light type |
|
Drive IC |
ST7789V |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
