TFT Display Description:
A 3.97 inch TFT LCD with IPS technology provides wider viewing angles and higher contrast ratios for clearer and more realistic image display, making it suitable for various applications.
Parameter:
| Model No. | P040H001-CTP |
| Screen Size | 3.97 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 71.856(H)x70.176(V)mm |
| Pixel pitch | 0.1497(H)x0.1462(V)mm |
| Pin | 40 pin |

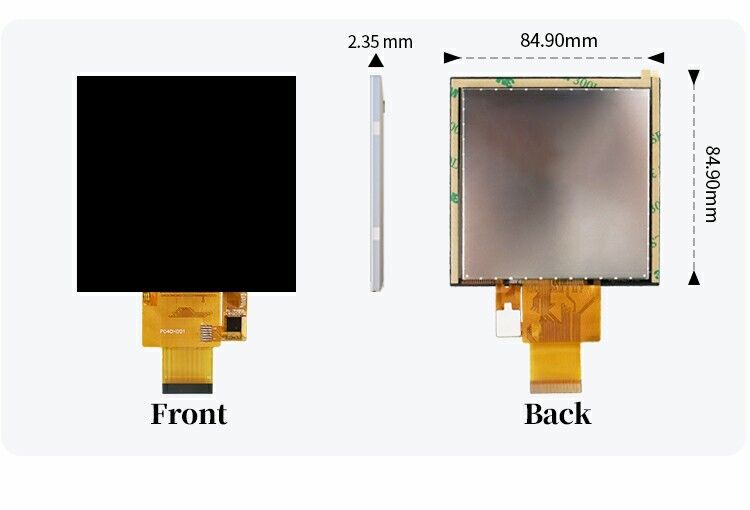

| Outline Dimension | 84.90x84.90x2.35mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black/Transmissive |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | RGB 18BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Applications
A 3.97 inch TFT LCD is a small-sized display with a high resolution and excellent color performance. It is widely used in various applications, such as portable devices, automotive electronics, medical equipment, and industrial control systems. In portable devices, it can be used as a display screen for smartphones, digital cameras, and portable media players. In automotive electronics, it can be used as a display screen for car infotainment systems, rearview cameras, and GPS navigation systems. In medical equipment, it can be used as a display screen for patient monitors, ultrasound machines, and endoscopes. In industrial control systems, it can be used as a display screen for PLCs, HMIs, and data loggers.
Product advantages
A 3.97 inch TFT LCD with IPS technology and an RGB interface has several product advantages. Firstly, its IPS technology provides wider viewing angles and higher contrast ratios, ensuring accurate color reproduction even at extreme viewing angles. Secondly, its high resolution and excellent color performance make it suitable for various applications such as portable devices, automotive electronics, medical equipment, and industrial control systems. Thirdly, its RGB interface enables easy integration with various display controllers, making it compatible with a wide range of devices. Additionally, it is a low-power consumption display, making it ideal for use in portable devices with limited battery life. Finally, its compact size and lightweight design make it easy to integrate into different applications, making it an attractive display option for manufacturers.
