مكان المنشأ:
شنتشن ، الصين
اسم العلامة التجارية:
Polcd
إصدار الشهادات:
RoHS, ISO9001
رقم الموديل:
P020H030-IPS
اتصل بنا
فيديو
فيديو

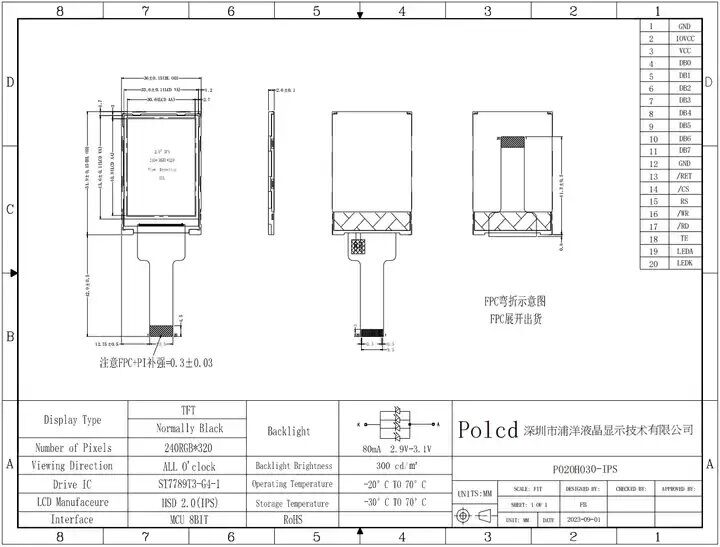

Parameter:
| Model | P020H030-IPS |
| Screen Size | 2.0 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 30.60(H)x40.80(V)mm |
| Pixel pitch | 0.0425(H)x0.1275(V)mm |
| Outline Dimension | 36.00x51.90x2.55mm |
| Pixel arrangement | RGB Vertical Stripe |
| Pins | 20 Pins |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 800:1 |
| Surface treatment | -- |
| Interface | 8 bit MCU |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Features
8Bit MCU interface.
Applications
1. MPOS Device.
2. Personal Navigation Device.
3. Other devices which require high quality displays.
أرسل استفسارك إلينا مباشرة
