مكان المنشأ:
شنتشن ، الصين
اسم العلامة التجارية:
Polcd
إصدار الشهادات:
RoHS, ISO9001
رقم الموديل:
P024C128-CTP
اتصل بنا
فيديو
فيديو
فيديو
Parameter:

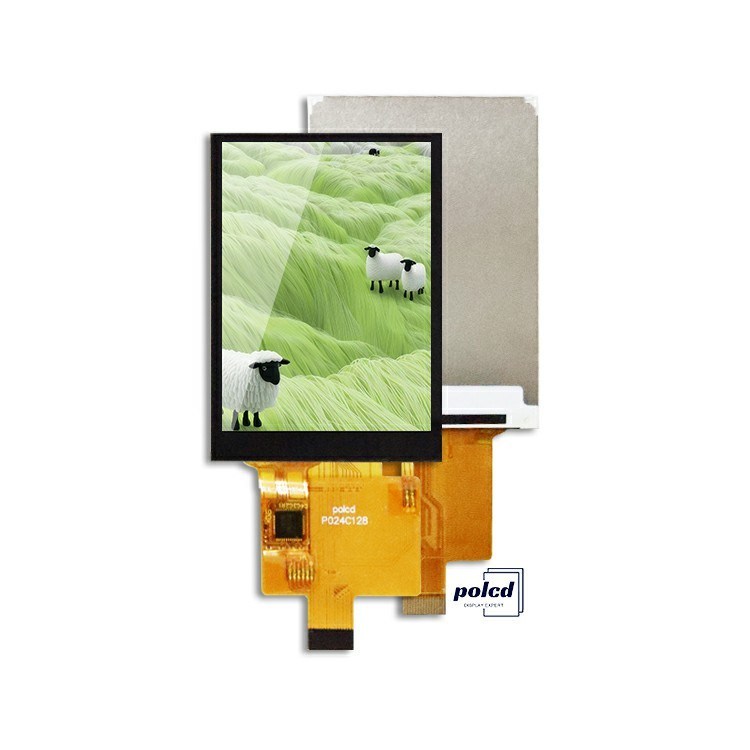

| Model | P024C128-CTP |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pins | 16 pins |

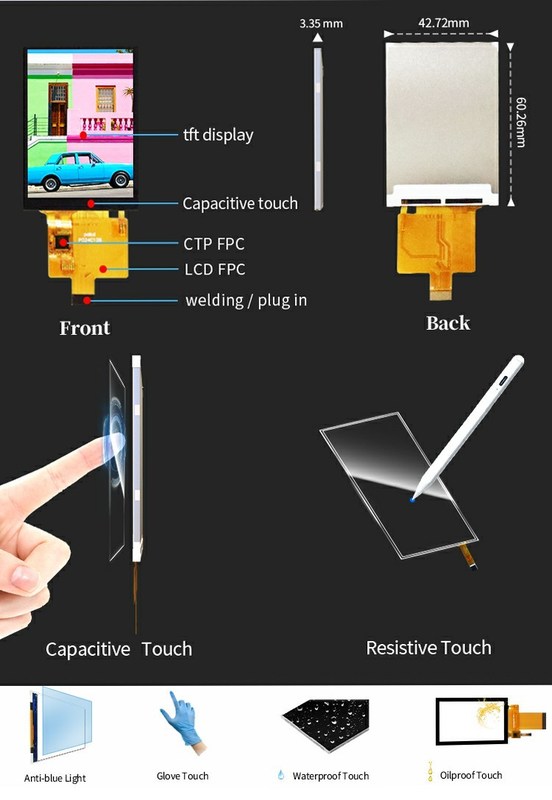

| Outline Dimension | 42.72x60.26x3.35mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 250:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| CTP IC | FT6336U |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Advantages
1.High-quality display: offer high-quality display performance with a resolution of up to 240x320 pixels, providing clear and sharp images and videos.
2.Wide viewing angle: TFT LCD technology typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.
3.Color display: can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.
4.Touch screen support: support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.
5.Low power consumption: it has low power consumption, which is important for devices that run on battery power.

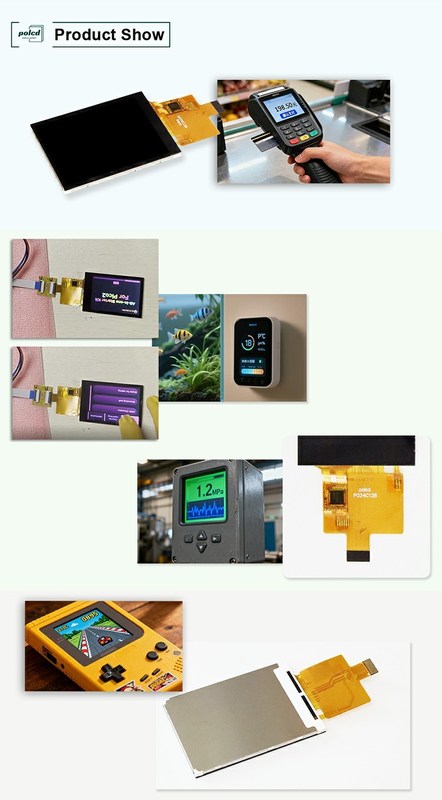

6.Durability: TFT LCD modules are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.
7.Customization: can be customized to meet specific application requirements, including different sizes, resolutions, and features.
