مكان المنشأ:
شنتشن ، الصين
اسم العلامة التجارية:
Polcd
إصدار الشهادات:
RoHS, ISO9001
رقم الموديل:
P024B040-IPS
اتصل بنا
فيديو
فيديو
فيديو
فيديو

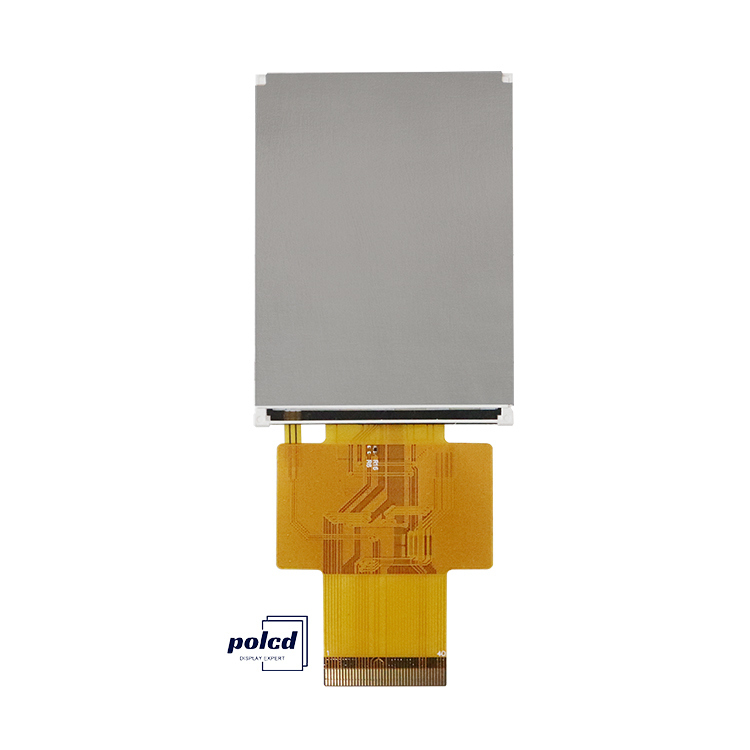

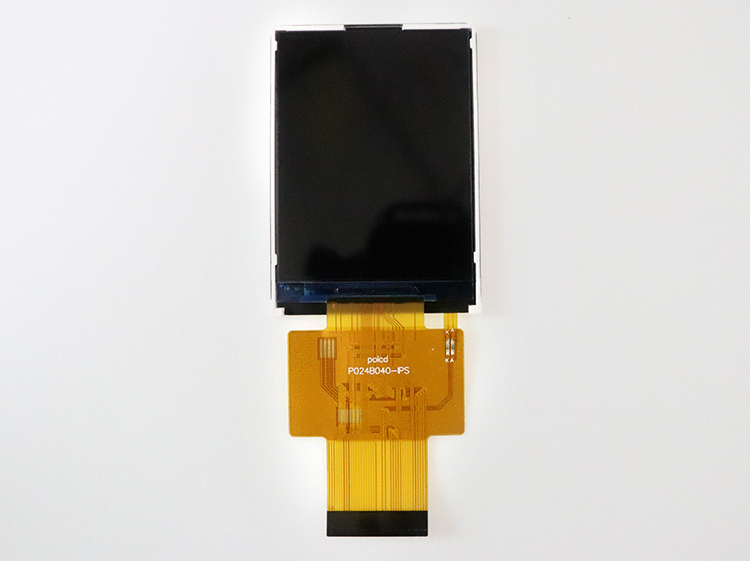

Description of 2.4 inch TFT LCD :
2.4 inch TFT LCDs are commonly used in a variety of electronic devices, including handheld gaming devices, automotive displays, industrial controllers, medical devices, and smart home devices. They typically have low power consumption, wide viewing angles, and can be customized to meet specific application requirements, including touch screen support and different backlight options.
Parameter:
| Item | Specification |
| Model | P024B040-IPS |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 0.153(H)x0.153(V)mm |
| Pins | 40 pins |

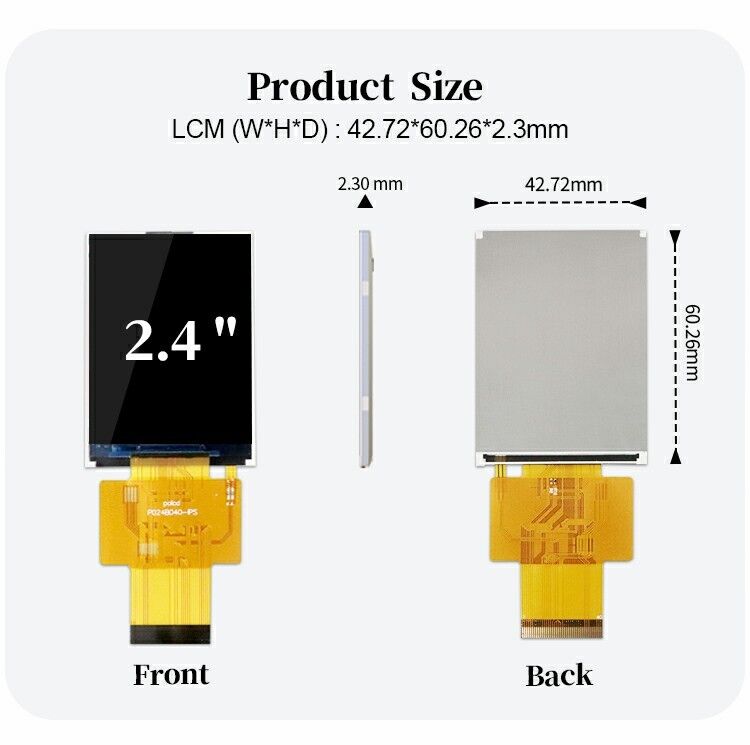

| Outline Dimension | 42.72x60.26x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |

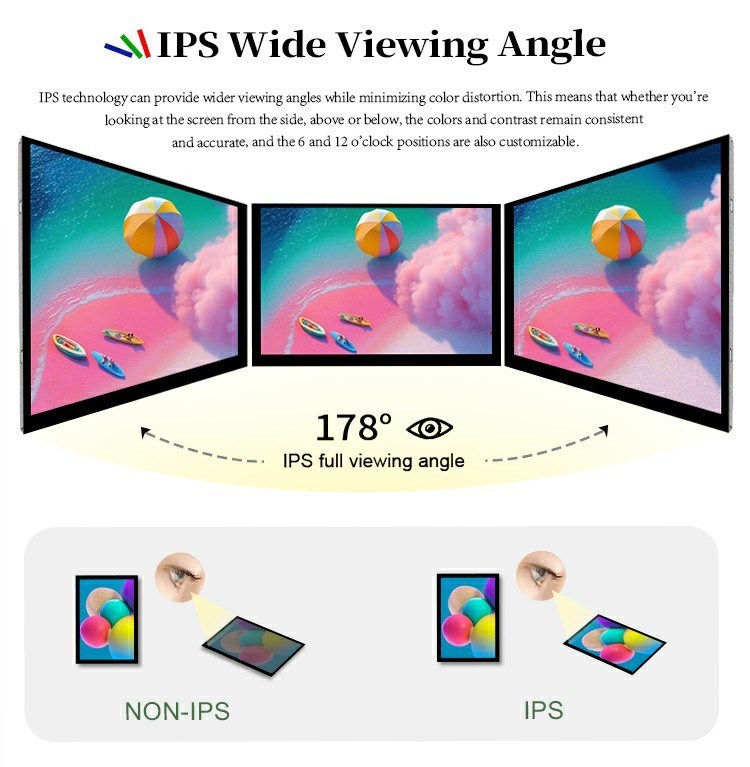

| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 450 nit |
| Contrast Ratio | 1200:1 |
| Surface treatment | -- |
| Interface | MCU 8/16BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
